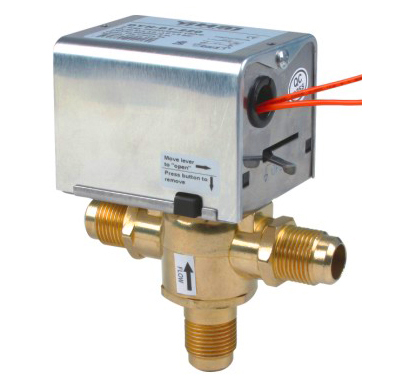

AC04 series motorized valve is designed to control hot and chilled water flow in heating, cooling, and air-conditioning systems. Featuring a forged brass valve body, low-noise synchromotor actuator, and hard sealing structure, it delivers reliable performance in high and low temperature environments.
Description
Product Description
The AC04 series motorized valve is used to control the flow of hot water and chilled water in heating, cooling, and air-conditioning systems.
It consists of an electrical actuator and a valve body, connected by a screw-type structure for easy installation and maintenance.
The valve body can be installed first, while the actuator is mounted afterward. The compact actuator design offers low noise operation, low power consumption, and stable performance even in high or low temperature environments.
The forged brass valve body combined with a hard sealing structure (no rubber) ensures excellent sealing performance and allows reliable operation in freezing conditions.
Key Features
- Forged brass valve body for durability
- Synchromotor drive with stable performance
- ABS plastic actuator shell
- BSP (British Standard Pipe Thread) connection
- Hard sealing valve structure, no rubber inside
- Operates reliably in freezing environments
- Low power consumption and low noise
- Compact design, easy installation and maintenance
Technical Specifications
| Product Series | AC04 Series Motorized Valve |
|---|---|
| Power Supply | 220V / 110V / 24V (±10%), 50/60Hz |
| Power Consumption | < 6W |
| Pressure Rating | 1.6 MPa |
| Actuating Force | 150N |
| Stroke | 3 mm |
| Valve Action Time | Open < 15s / Close < 6s |
| Leakage Rate | < KV 0.05% |
| Valve Interface | Cap nut M30 × 1.5 |
