AC3083H is a simple mechanical thermostat for electric heating systems,
featuring knob temperature control, non-programmable operation, and high temperature protection.
Description

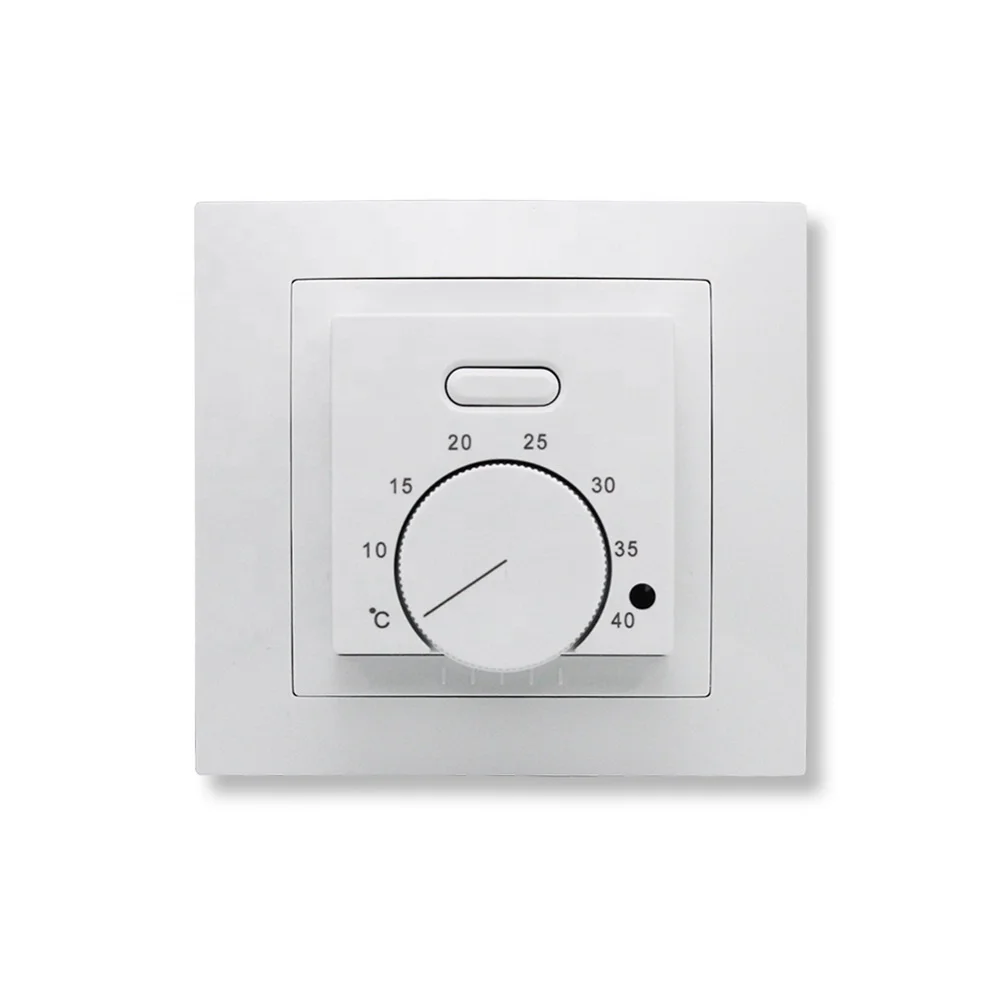

AC3083H Mechanical Thermostat is a simple electric analog thermostat designed for direct wall installation.
It features a convenient rotary knob for easy temperature adjustment and supports OFF mode for manual control.
The non-programmable design makes it easy to operate and suitable for users who prefer straightforward temperature regulation.
The thermostat operates on 230V 50/60Hz power supply with a maximum load current of 16A,
making it suitable for various electric heating applications.
With low power consumption of less than 1W, it ensures stable and energy-efficient operation.
AC3083H supports both internal and external temperature sensors, providing flexible installation options.
It offers a temperature setting range from +5°C to 35°C and includes high temperature protection for safe operation.
With IP20 protection rating and durable ABS + PC housing, the thermostat is suitable for residential
and commercial electric heating control.
- Mechanical analog thermostat with rotary knob control
- Non-programmable, simple and reliable operation

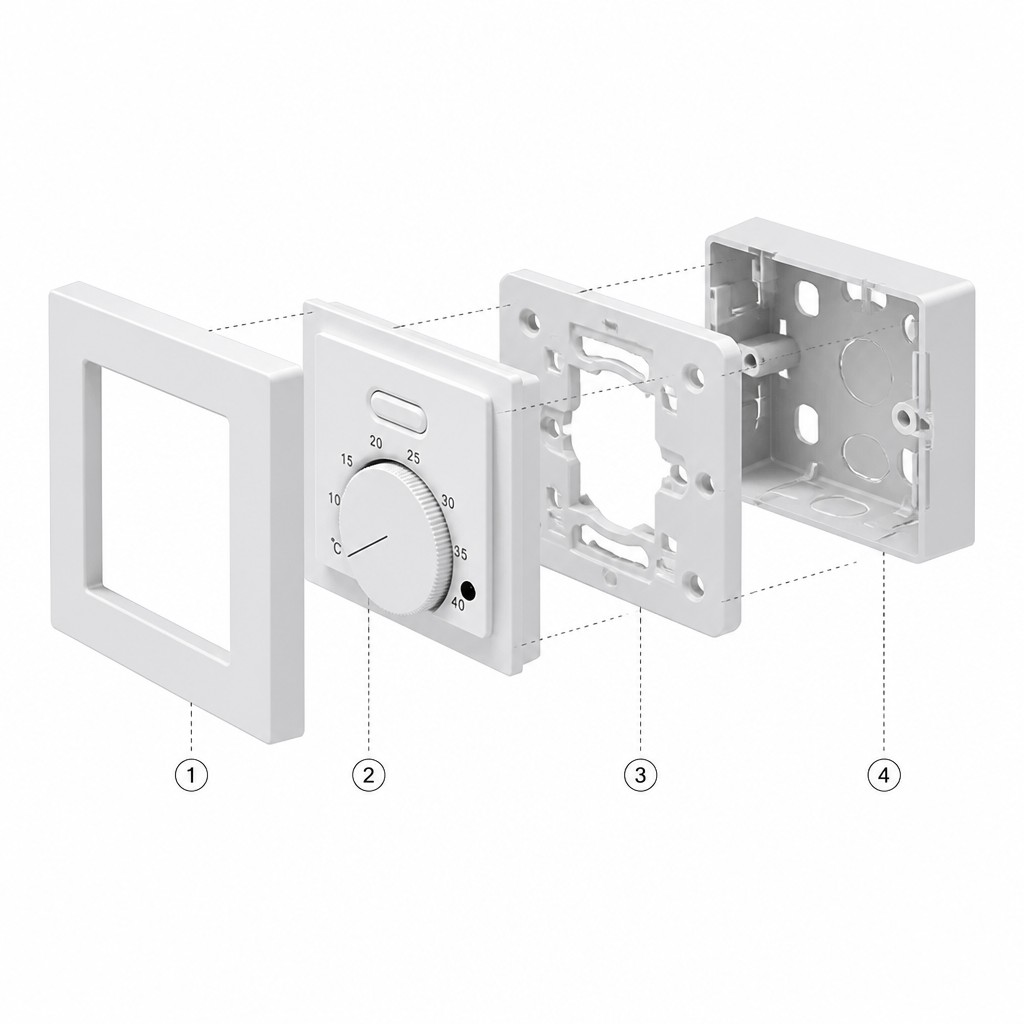

- Direct wall-mounted installation
- OFF mode supported
- High temperature protection
- Supports internal and external temperature sensors
- Low power consumption ≤1W
- Durable ABS + PC housing
| Model | AC3083H |
| Product Type | Mechanical Thermostat |
| Power Supply | 230V, 50/60Hz |
| Max. Current | 16A |
| Power Consumption | ≤1W |
| Temperature Setting Range | +5°C to 35°C |
| Ambient / Storage Temperature | 0°C to 50°C |
| Internal Sensor | 10kΩ NTC |
| External Sensor | 3m, B=3950, 10K@25℃ |
| Protection Class | IP20 |
| Housing Material | ABS + PC |
- Electric room heating systems
- Electric floor heating control
- Residential heating applications
- Commercial electric heating projects
- OEM and basic heating control solutions
