AC607H-WiFi smart floor heating thermostat for electric and hydronic systems with WiFi control, ±1℃ accuracy, low power consumption and multiple load current options.
Description
AC607H-WiFi Smart Electric and Hydronic Floor Heating Thermostat is designed for precise temperature control
in both electric and water-based floor heating systems. It operates on 220VAC 50/60Hz power supply and
supports multiple load current options including 3A, 5A, 16A, and 20A, making it suitable for a wide range
of residential and commercial heating applications.
The thermostat provides a temperature control range from 5℃ to 45℃ with an accuracy of ±1℃, ensuring
stable and comfortable indoor temperature management. It features a built-in temperature sensor combined
with an external NTC sensor, allowing flexible control and protection of floor heating systems.
Temperature limitation can be set between 20℃ and 60℃ when using the external sensor.
With low power consumption of less than 1W, IP20 protection rating, and durable anti-flammable PC + ABS housing,
the AC607H-WiFi is suitable for apartments, villas, hotels, and various project-based heating solutions.
WiFi connectivity enables smart temperature control and remote operation, making it ideal for OEM and
smart building heating control applications.
| Model | AC607H-WiFi |
| Product Type | Smart Floor Heating Thermostat |
| Power Supply | 220VAC, 50/60Hz |
| Load Current | 3A / 5A / 16A / 20A |
| Temperature Control Range | 5℃–45℃ |
| Accuracy | ±1℃ |
| Power Consumption | <1W |
| Default Temp. Deviation | 1℃ (0.5–10℃ adjustable) |
| Sensor | Built-in sensor + External NTC |
| Temperature Limitation | 20–60℃ (external sensor) |
| Environmental Temperature | -5℃ to 50℃ |
| IP Rating | IP20 |
| Housing Material | Anti-flammable PC + ABS |
| Model | AC607H-WiFi |
| Product Type | Smart Floor Heating Thermostat |
| Power Supply | 220VAC, 50/60Hz |
| Load Current | 3A / 5A / 16A / 20A |
| Temperature Control Range | 5℃–45℃ |
| Accuracy | ±1℃ |
| Power Consumption | <1W |
| Default Temp. Deviation | 1℃ (0.5–10℃ adjustable) |
| Sensor | Built-in sensor + External NTC |
| Temperature Limitation | 20–60℃ (external sensor) |
| Environmental Temperature | -5℃ to 50℃ |
| IP Rating | IP20 |
| Housing Material | Anti-flammable PC + ABS |
- Electric floor heating systems
- Hydronic (water-based) floor heating systems

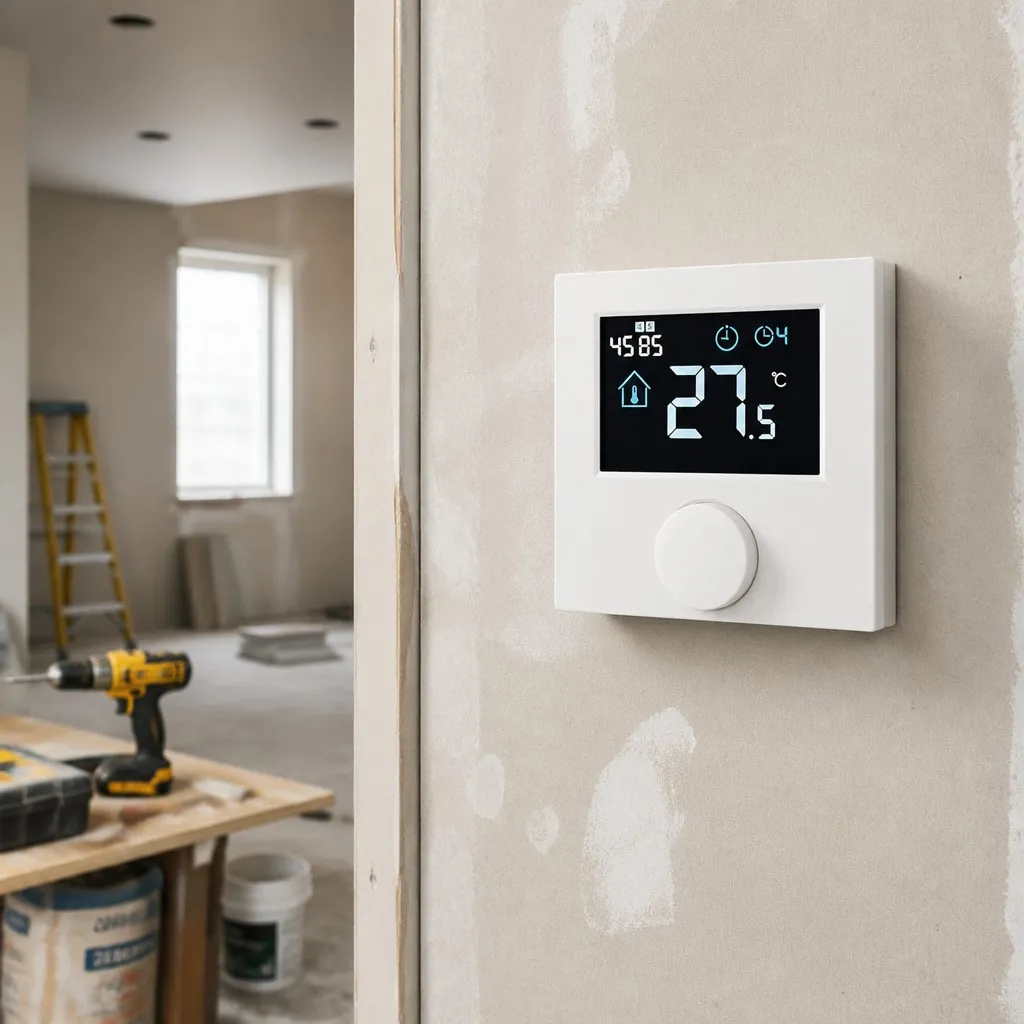

- Apartments and residential buildings

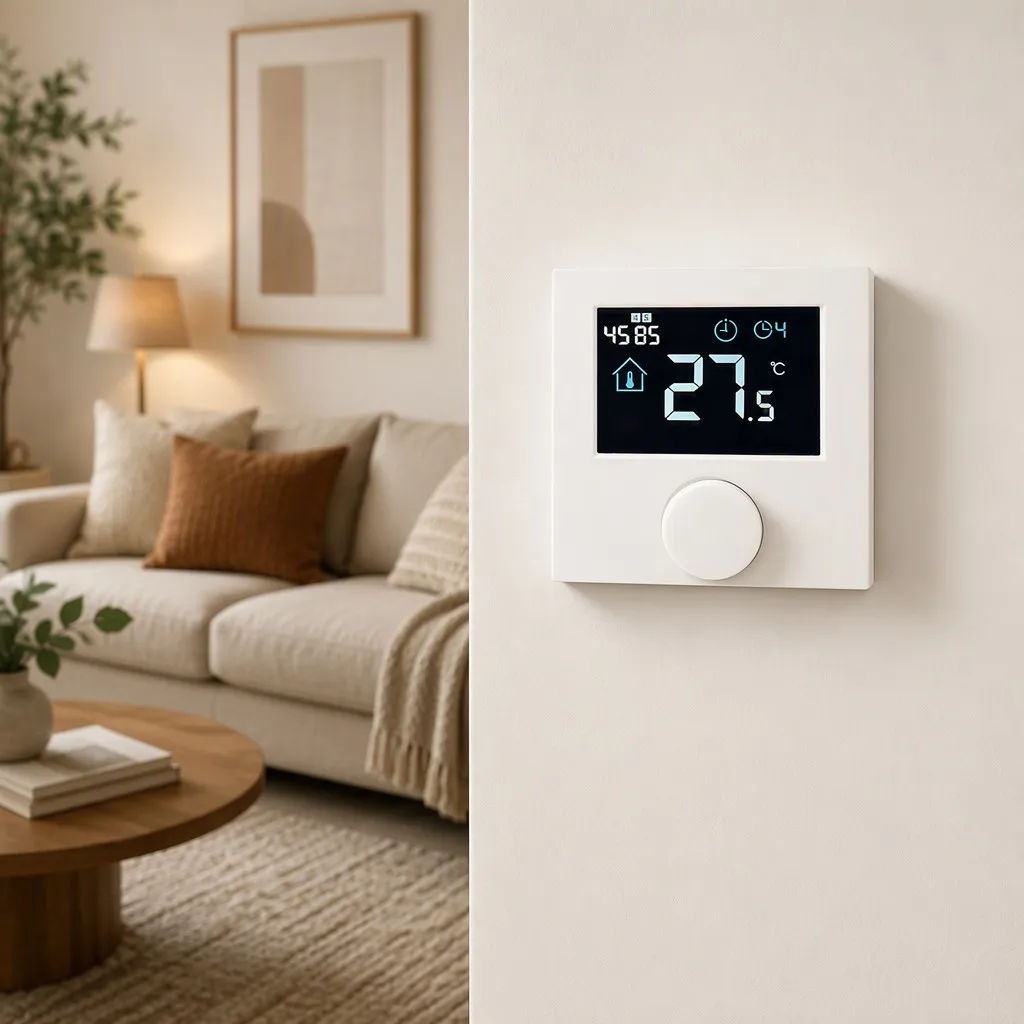

- Villas and smart homes

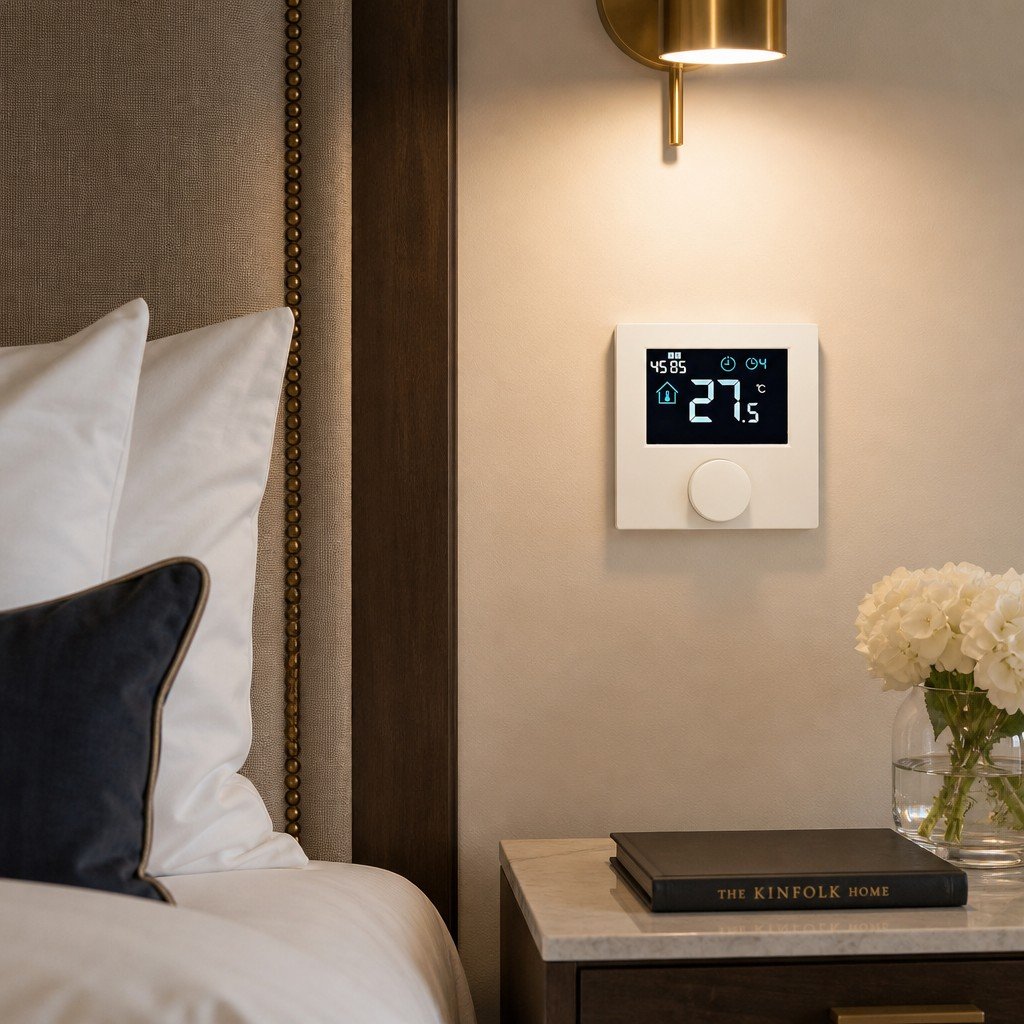

- Hotels and commercial heating projects
- OEM / ODM heating control solutions
