AC8100H is a smart programmable room thermostat for electric heating systems,
supporting Wi-Fi or ZigBee connectivity, weekly scheduling, external sensors,
and remote control via mobile application.
Description
The AC8100H Smart Programmable Room Thermostat is designed for controlling electric heating devices
and is intended for installation in an installation box with a pocket.
The thermostat can only be installed indoors and supports both external floor temperature sensors
and external air temperature sensors for precise temperature control.
AC8100H is available in Wi-Fi and ZigBee versions. The Wi-Fi version allows remote control through
a mobile application, while the ZigBee version requires a ZigBee 3.0 gateway for app connectivity.
Both versions enable approximate power consumption monitoring of the heating system and provide
flexible weekly heating schedules with 5+1+1 programming.
With a temperature control accuracy of ±0.5°C, adjustable hysteresis, and support for both room
and floor temperature control, the AC8100H thermostat is suitable for electric floor heating and
room heating applications. All settings are stored in memory to prevent data loss during power outages.
- Smart programmable room thermostat for electric heating
- Wi-Fi or ZigBee 3.0 communication protocol
- Remote control via mobile application
- Weekly heating schedule: 5+1+1
- Approximate power consumption monitoring
- Room and floor temperature control
- External air sensor and external floor sensor support
- High temperature protection
- Settings memory retained during power loss
- Indoor installation only
| Model | AC8100H |
| Product Type | Smart Programmable Room Thermostat |
| Power Supply | 230V AC |
| Maximum Load | 16A |
| Accuracy | ±0.5°C |
| Hysteresis | 0.5°C – 5°C |
| Floor Temperature Range | 5°C – 60°C |
| Room Temperature Range | 5°C – 95°C |
| Weekly Program | 5+1+1 |
| Communication Protocol | Wi-Fi / ZigBee 3.0 |
| Sensor Input | External air sensor & external floor sensor |
| IP Rating | IP20 |

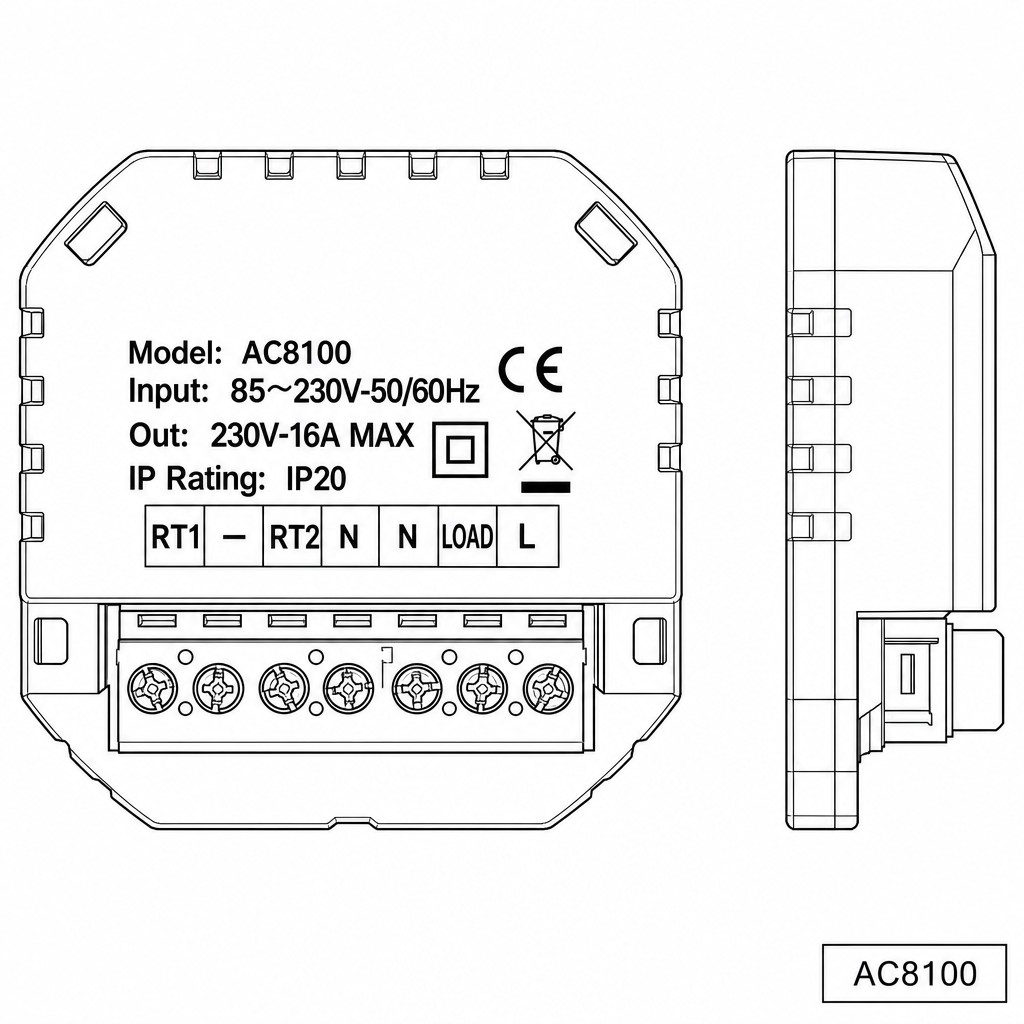

| Dimensions | 51 × 51 × 40 mm |

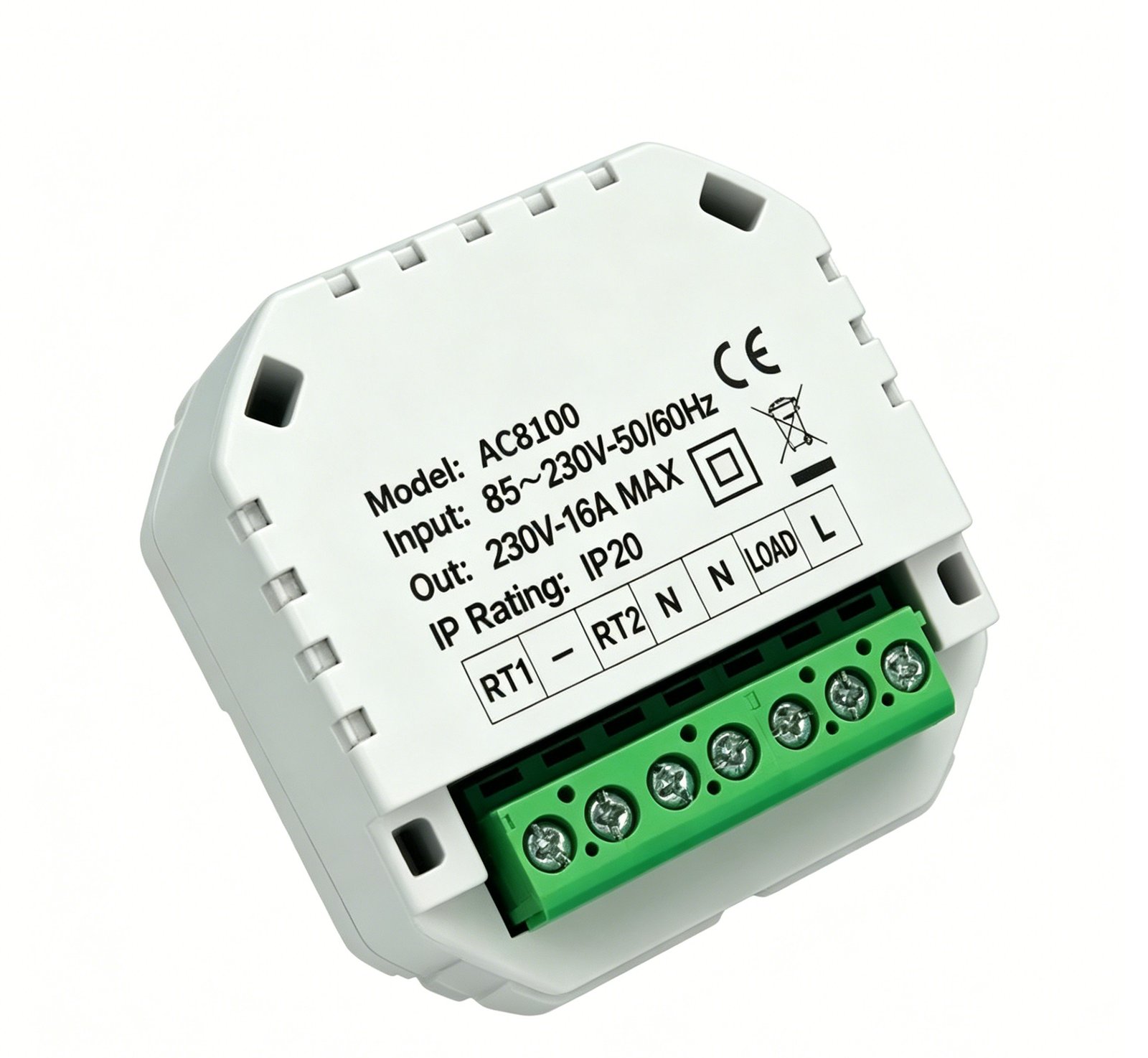

- Indoor installation only
- Install in an installation box with pocket
- Power must be switched off before installation
- Installation should be performed by a qualified electrician
- For floor heating, use external floor sensor and set temperature limits according to floor manufacturer requirements
- Mobile app: Smart Life / Tuya Smart
- Wi-Fi version: Direct app connection
- ZigBee version: Requires ZigBee 3.0 gateway
- Supports weekly programming and manual control via app
- CE certified
- RoHS compliant
- Complies with EMC Directive 2014/30/EU
- Complies with Low Voltage Directive 2014/35/EU
