TELIN / HVAC CONTROL / MOTORIZED VALVE

Brass Square
Motorized Ball Valve

A compact brass motorized ball valve with a square electric actuator for fan-coil HVAC control. The linked listing identifies AC 240V operation and 1/2″, 3/4″ and 1″ connection options for heating and cooling water systems.

AC 240VBrass Valve Body1/2″ · 3/4″ · 1″FCU / HVAC
Send an InquiryView Specifications

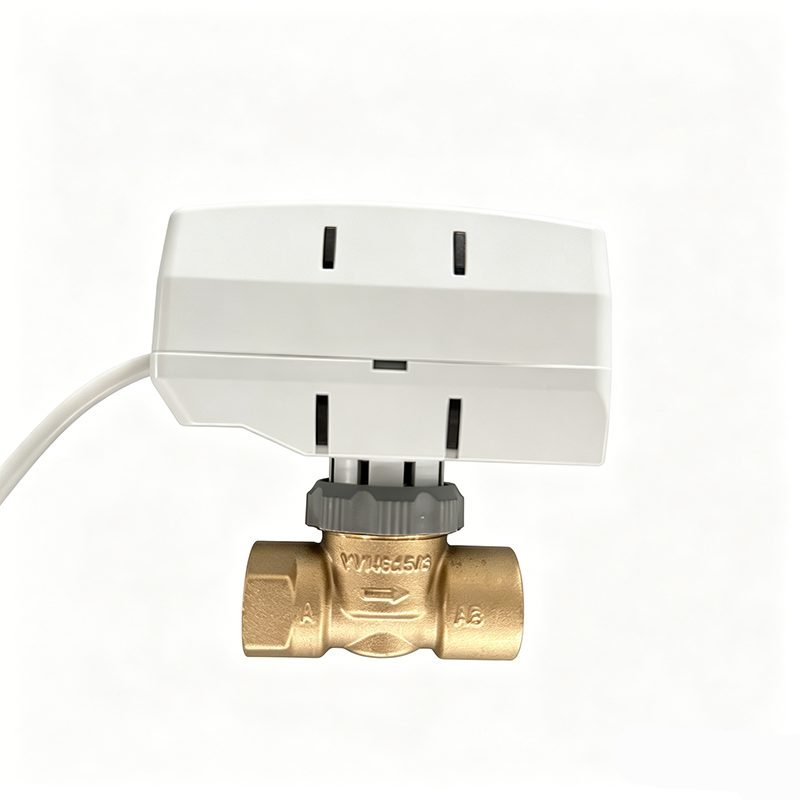

ORIGINAL LISTING IMAGEBrass square motorized ball valve with white actuator
Original listing image · White square actuator on brass valve body
AT A GLANCE

Compact valve control for HVAC water circuits

The listing positions this product as a brass square motorized ball valve for FCU fan-coil HVAC control, with AC 240V operation and three listed connection sizes.

QUICK SPECIFICATIONS
ProductMotorized Ball Valve
ActuatorSquare Electric
VoltageAC 240V
MaterialBrass Valve Body
Connection1/2″ · 3/4″ · 1″
SystemFCU / HVAC
PROJECT FIT

For fan-coil heating and cooling control

Use this valve where a compatible motorized water-valve assembly is required in an FCU or HVAC circuit. Select the connection size and verify the final valve configuration before ordering.

  • Confirm AC 240V supply and wiring.
  • Confirm 1/2″, 3/4″ or 1″ connection size.
  • Verify flow direction, valve type and actuator compatibility.
  • Check available clearance around the square actuator.

Brass Water Valve

The product gallery shows a brass valve body paired with a white square electric actuator housing.

FCU Integration

The product title and overview graphic identify fan-coil-unit HVAC control as a primary application.

Multiple Sizes

The listing identifies 1/2″, 3/4″ and 1″ connection options for project matching.

ORIGINAL LISTING GALLERY

Real product and technical references

Brass square motorized ball valve product view
01 · White square actuator and brass valve body

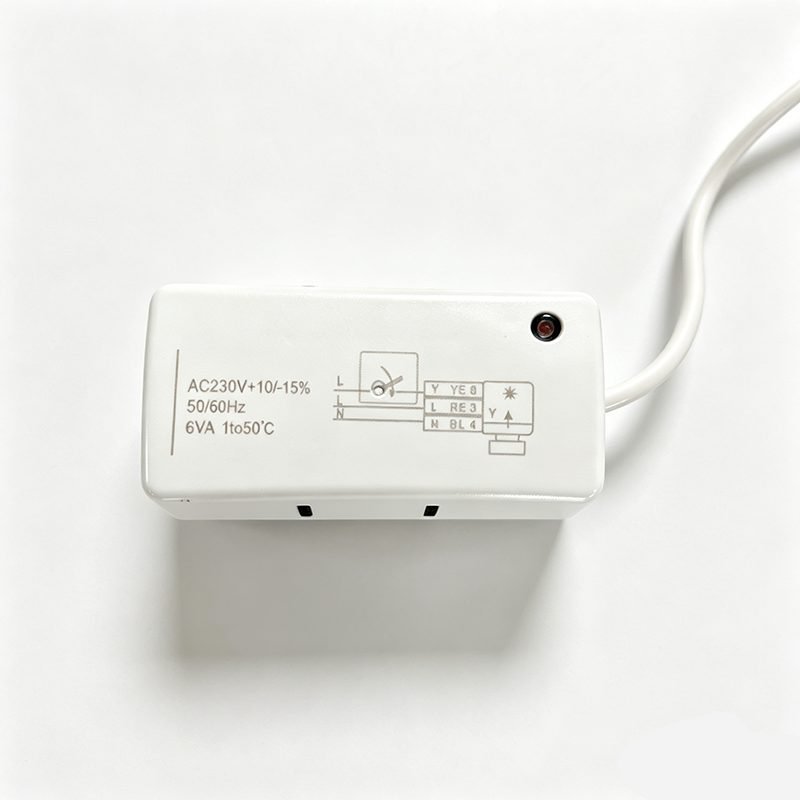

Motorized valve rear label and cable
02 · Rear label, cable and housing detail

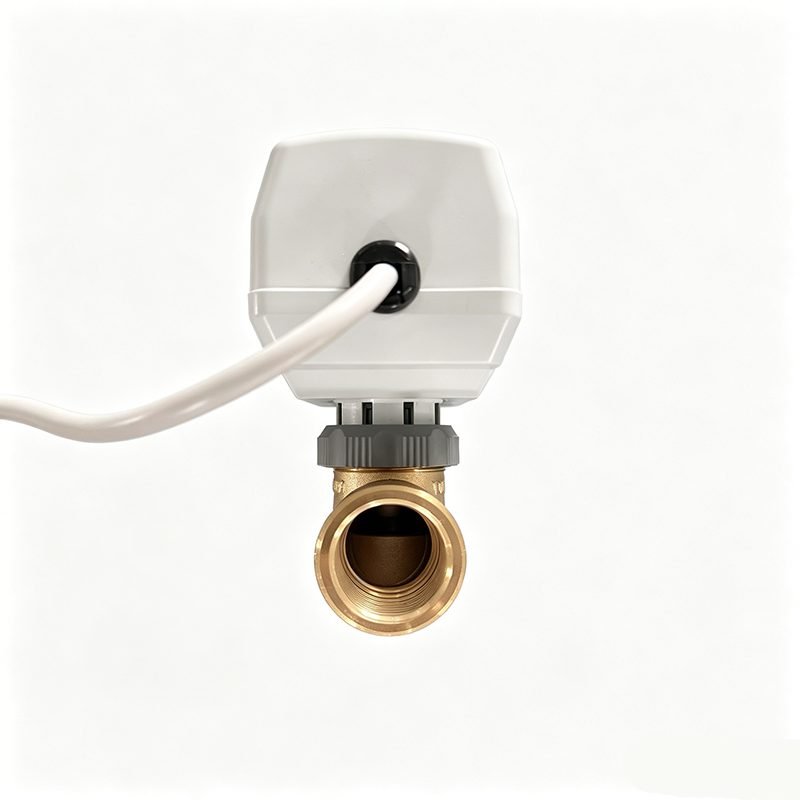

Motorized brass valve connection view
03 · Brass connection and actuator underside

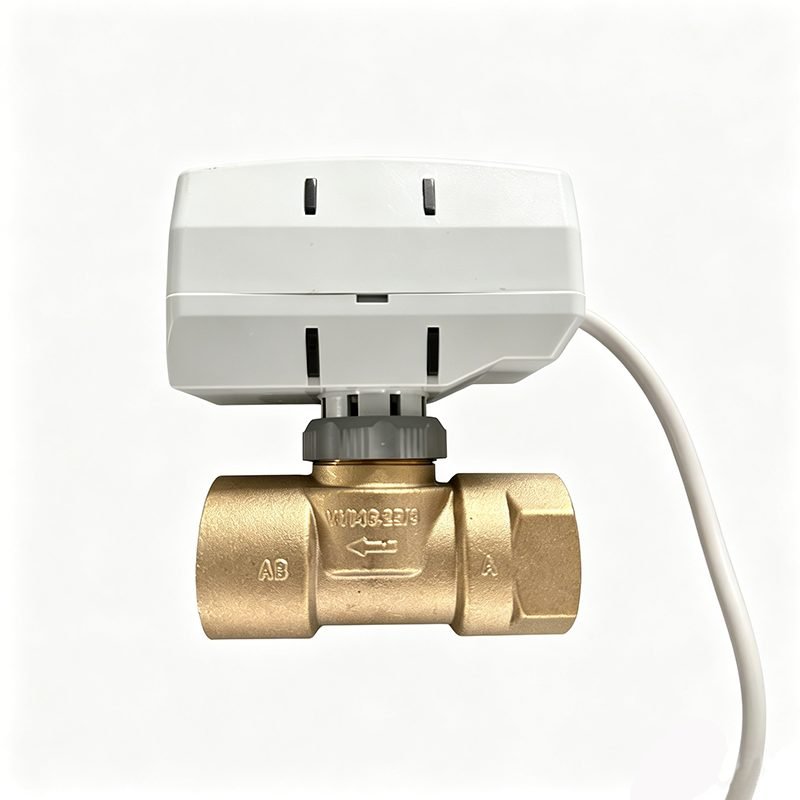

Motorized valve side product view
04 · Side product profile and cable exit
Motorized zone valve overview and applications
05 · Original overview graphic with FCU, floor heating and HVAC panels
Motorized valve technical graphic
06 · Original technical graphic and interface reference
LISTING APPLICATION REFERENCES

Application contexts shown by the supplier

The first two listing images contain application and technical panels. They are original supplier graphics, not newly generated scenes; use them as application references while confirming the ordered valve configuration.

Supplier application panels for FCU floor heating and HVAC systems
Original listing reference · FCU, floor-heating and HVAC application panels

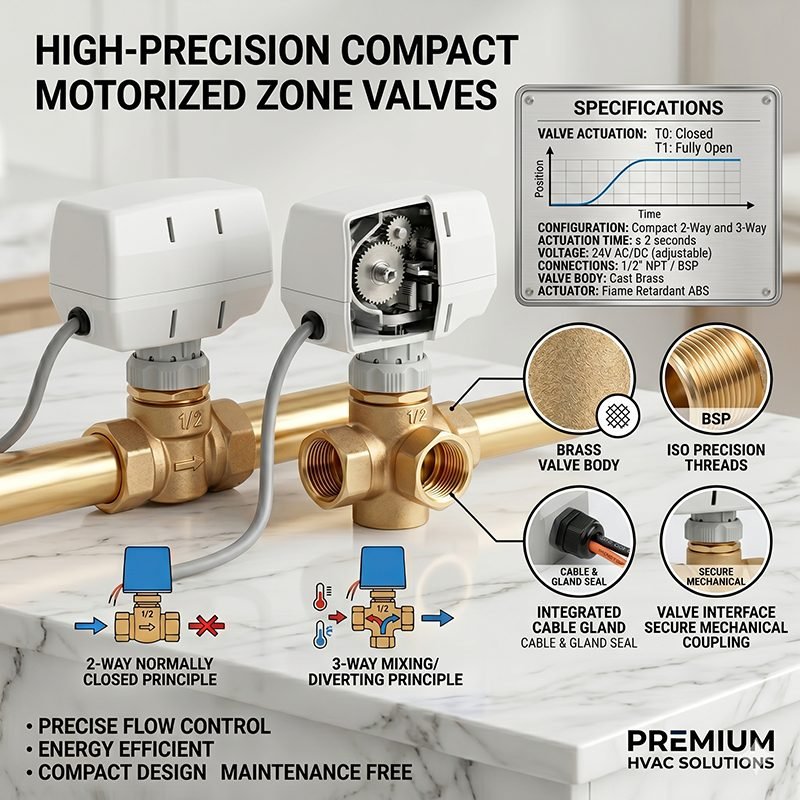

Supplier technical panels for motorized zone valve
Original listing reference · Valve principles, brass body and interface details

Image 2 presents technical illustrations that include 2-way normally-closed and 3-way mixing/diverting principles. Confirm whether the ordered item is 2-way or 3-way, together with the final connection size and wiring, in the supplier’s technical documentation.

PROJECT INQUIRY

Request valve sizing and HVAC configuration details

Share your required voltage, connection size, FCU or HVAC application, flow direction and project quantity. Use the TELIN contact form to confirm current availability, configuration, lead time and technical drawings.
