Color-coded control
Red upper caps and blue lower caps make supply and return sides easy to distinguish during installation and service.
TELIN / RADIANT FLOOR SYSTEMS
Brass
5-Circuit
Manifold
A compact distribution set for organized, balanced water-based floor heating.
Designed for underfloor heating projects, this five-circuit brass manifold groups supply and return connections in a serviceable assembly with color-coded control caps, mounting brackets and accessible outlet points.
Brass body5 circuits110–230V project optionFlow distributionEasy mounting

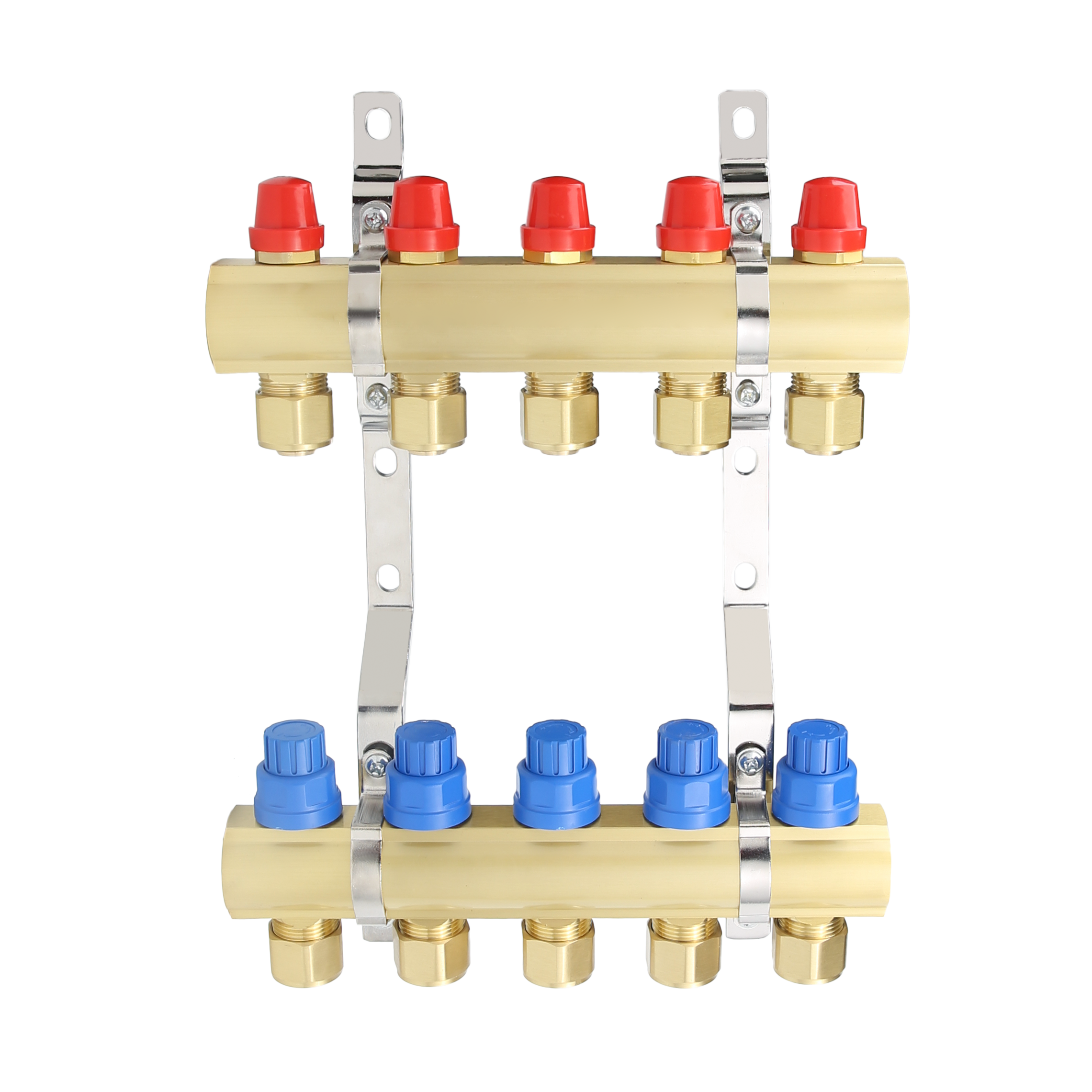

Product view · five-circuit brass distribution set with red and blue control caps
AT A GLANCE
Five loops. One clear control point.
The manifold is the organized interface between the primary heating circuit and each individual floor loop. The five-outlet format is suitable for compact residential rooms, apartments and small project zones where accessible balancing matters.
Compact wall mounting
Metal brackets support a clean installation inside a manifold cabinet or service area.
Accessible outlets
Threaded outlet connections provide a practical route to individual radiant floor heating loops.
TECHNICAL PROFILE
Product specifications
Product typeFloor heating distribution set
MaterialBrass
Circuit format5-circuit manifold
ApplicationUnderfloor heating
Heating systemWater-based heating
Voltage110–230V
RelayNone
Project supportTotal solution capability
SYSTEM WORKFLOW
From heat source to floor loop
Use the five-circuit assembly as the distribution point for individual radiant floor loops. Final pipe sizes, operating pressure, flow range and actuator configuration should be confirmed against the project design.
- 01 Mount the header assembly in an accessible cabinet position
- 02 Connect supply and return to the primary heating circuit
- 03 Connect the five floor-heating loops to matching outlets
- 04 Fill, purge air and pressure-test all connections
- 05 Balance each circuit before commissioning
PRODUCT VIEWS
Built for compact hydronic layouts
Before ordering, confirm the five-circuit layout, connection size, flow-control arrangement, pressure requirements and compatibility with the selected floor-heating controls.
PROJECT INQUIRY
Plan the right manifold set
Send your circuit count, connection size, project quantity and system requirements to the TELIN team.
