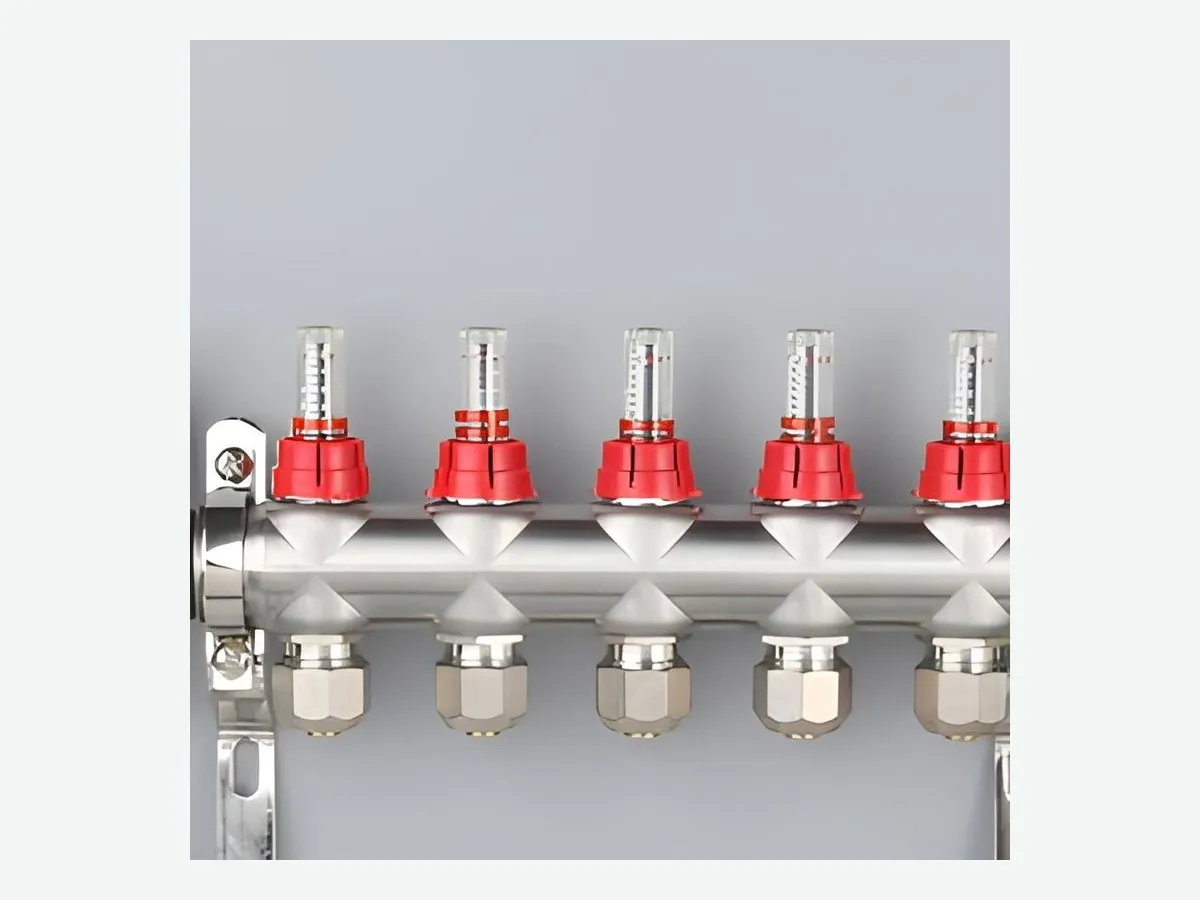

Flow at a glance
Transparent flow-meter bodies provide a quick visual reference during commissioning and balancing.
TELIN / RADIANT FLOOR SYSTEMS
Stainless
Steel
Manifold
A clean flow-distribution header for balanced underfloor heating circuits.
Built for radiant floor heating systems, the stainless steel manifold combines visible flow meters, return-side actuator positions, isolation valves and a serviceable mounting frame in one organized assembly.
Stainless steelRadiant floor heatingFlow distributionVisible flow metersPressure gauge option

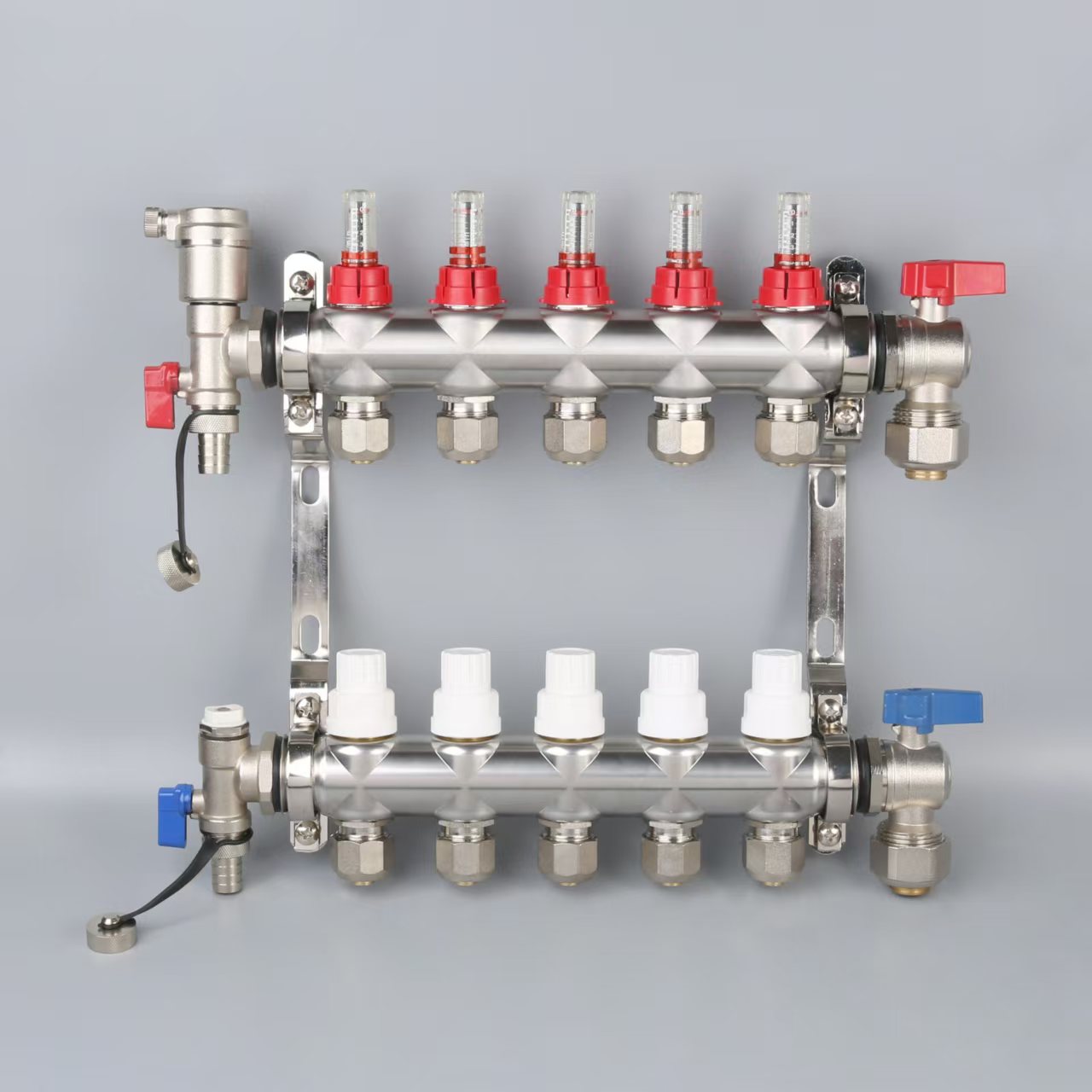

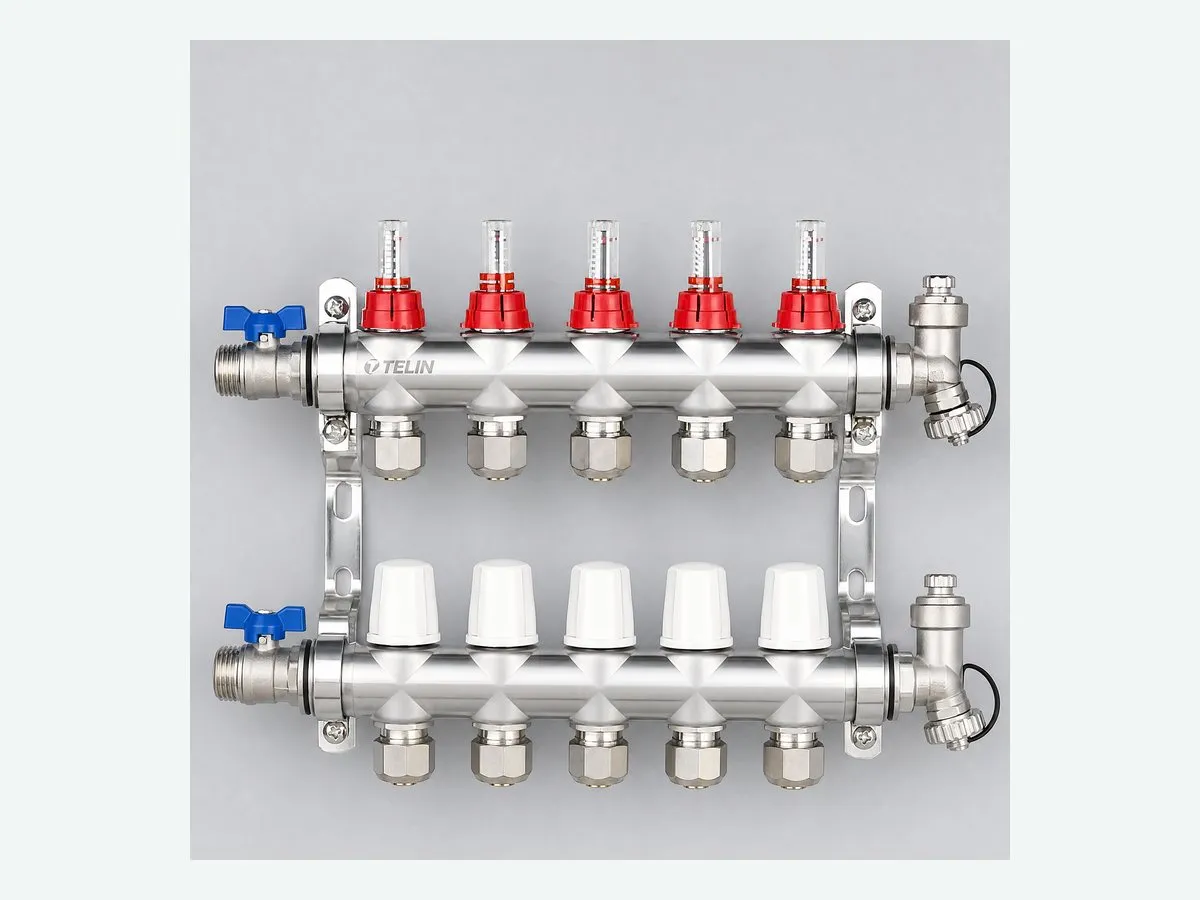

Product view · stainless headers with flow meters, return caps and isolation valves
AT A GLANCE
Make every circuit visible.
The manifold acts as the distribution point between the heat source and individual floor-heating loops. Clear flow indication and accessible adjustment points help installers balance the system and keep future service work organized.

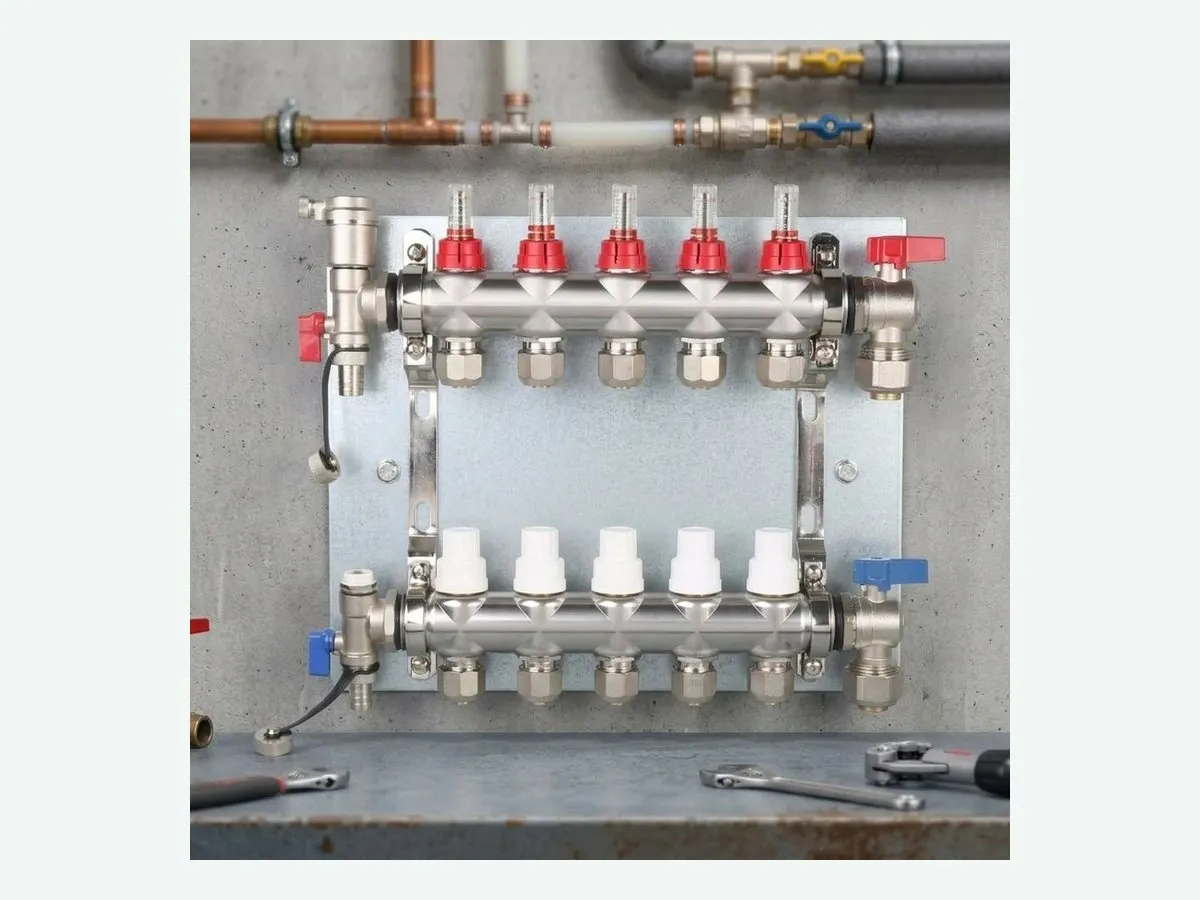

Organized installation
Paired headers, mounting brackets and end assemblies support a clean manifold cabinet layout.

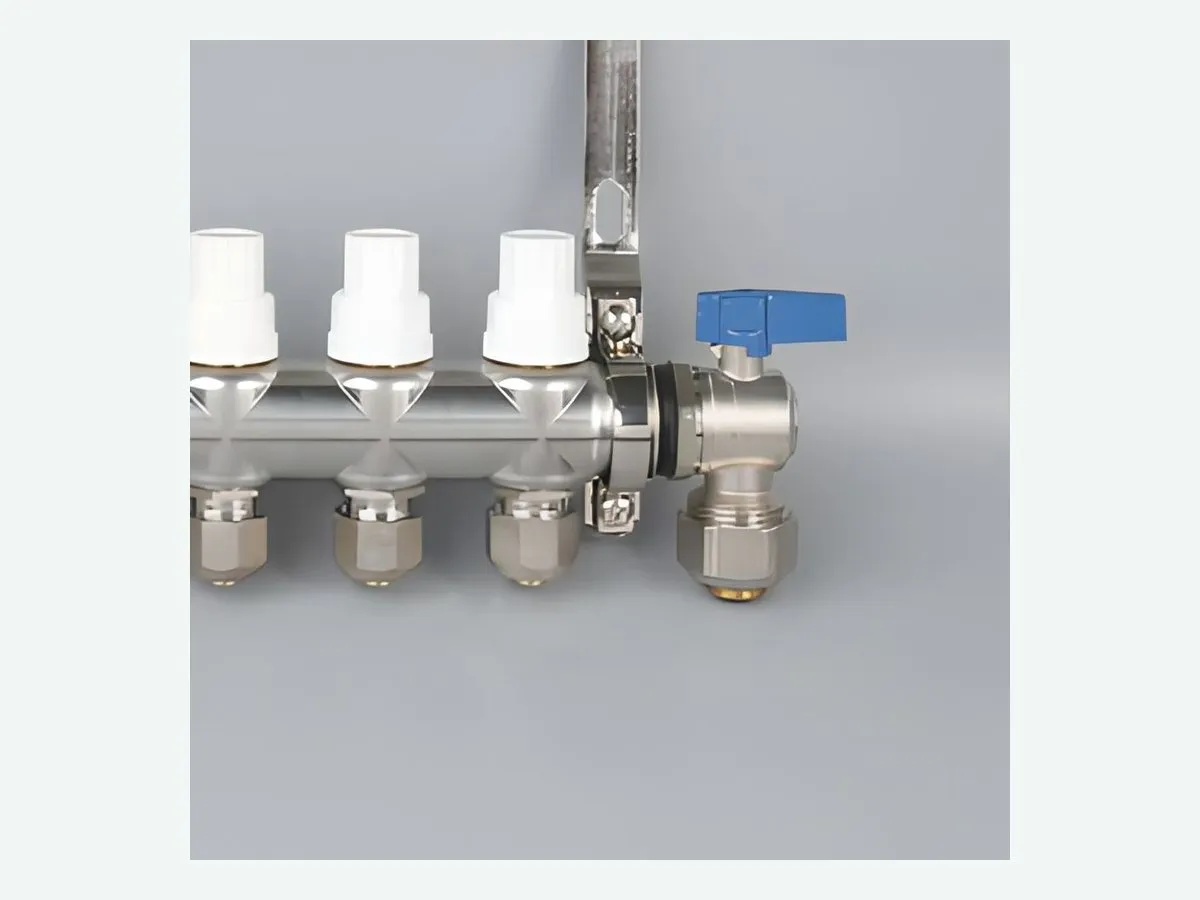

Service-ready details
End valves, drain points and isolation controls make the distribution assembly easier to commission and maintain.
TECHNICAL PROFILE
Product specifications
Product typeRadiant floor heating manifold
MaterialStainless steel
ApplicationRadiant floor heating
Heating systemUnderfloor hydronic system
Visible featuresFlow meters and pressure gauge
RelayNone / N/A
VoltageNone / N/A
ConfigurationMulti-circuit distribution header

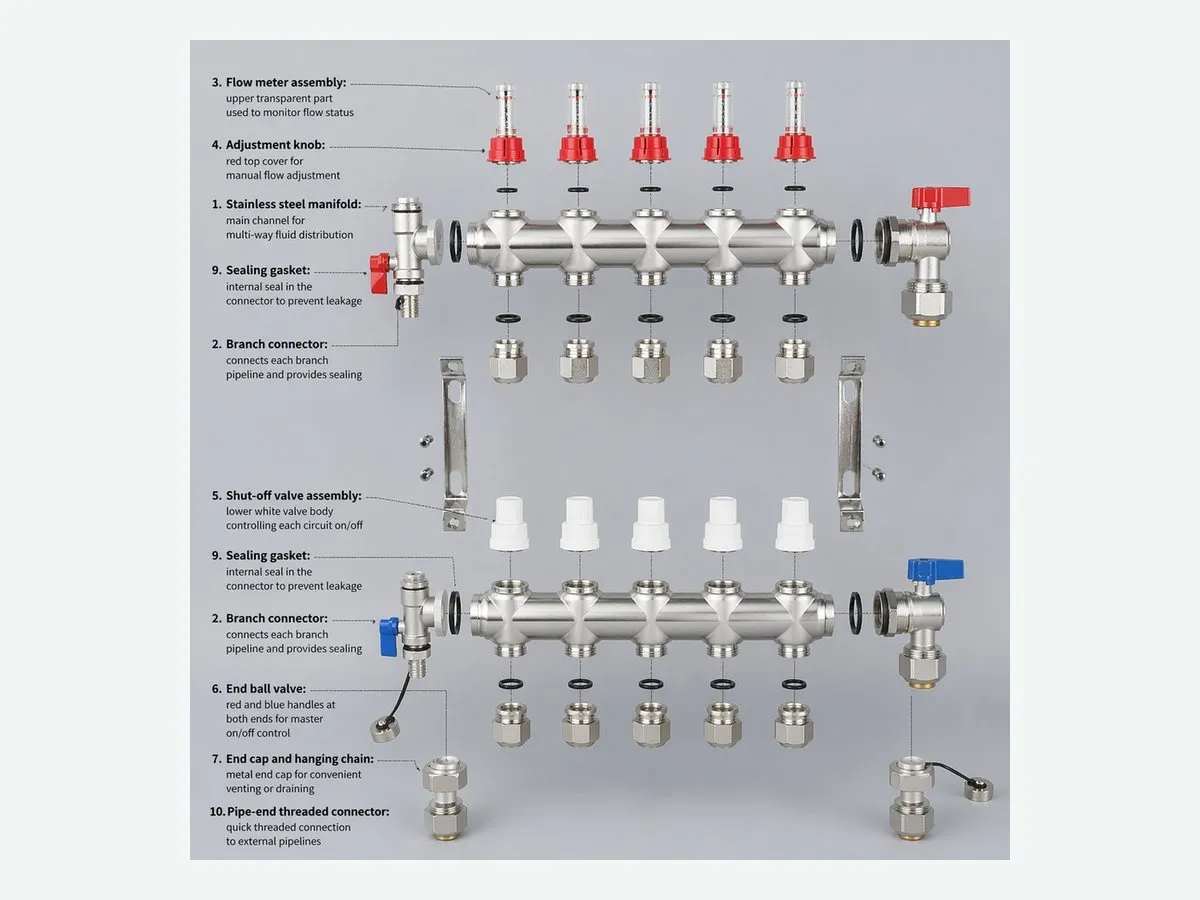

INSTALLATION FLOW
From header to room loop
Choose the circuit count and connection format according to the floor plan, loop length, required flow and cabinet space. Final system design should be confirmed by the installer or heating engineer.
- 01 Position the manifold at an accessible service height
- 02 Connect supply and return headers to the primary circuit
- 03 Connect each floor-heating loop to its matching outlet
- 04 Fill, purge air and check every connection
- 05 Balance flow meters before final commissioning
PRODUCT VIEWS
Designed for clear system planning
Confirm circuit count, connection size, pressure gauge arrangement and actuator compatibility against the project design before ordering.
PROJECT INQUIRY
Specify your manifold assembly
Send the number of circuits, connection size, flow requirements and project quantity to the TELIN team.
