5-Zone
Central
Control Box
A complete control solution for hydronic floor heating systems.
Achieve scientific and rational operation between wall-hung boilers, external water pumps, room thermostats, and thermal actuators. This wired central control box efficiently manages up to 5 thermostats across 8 zones, saving energy and reducing system malfunctions in modern water heating applications.

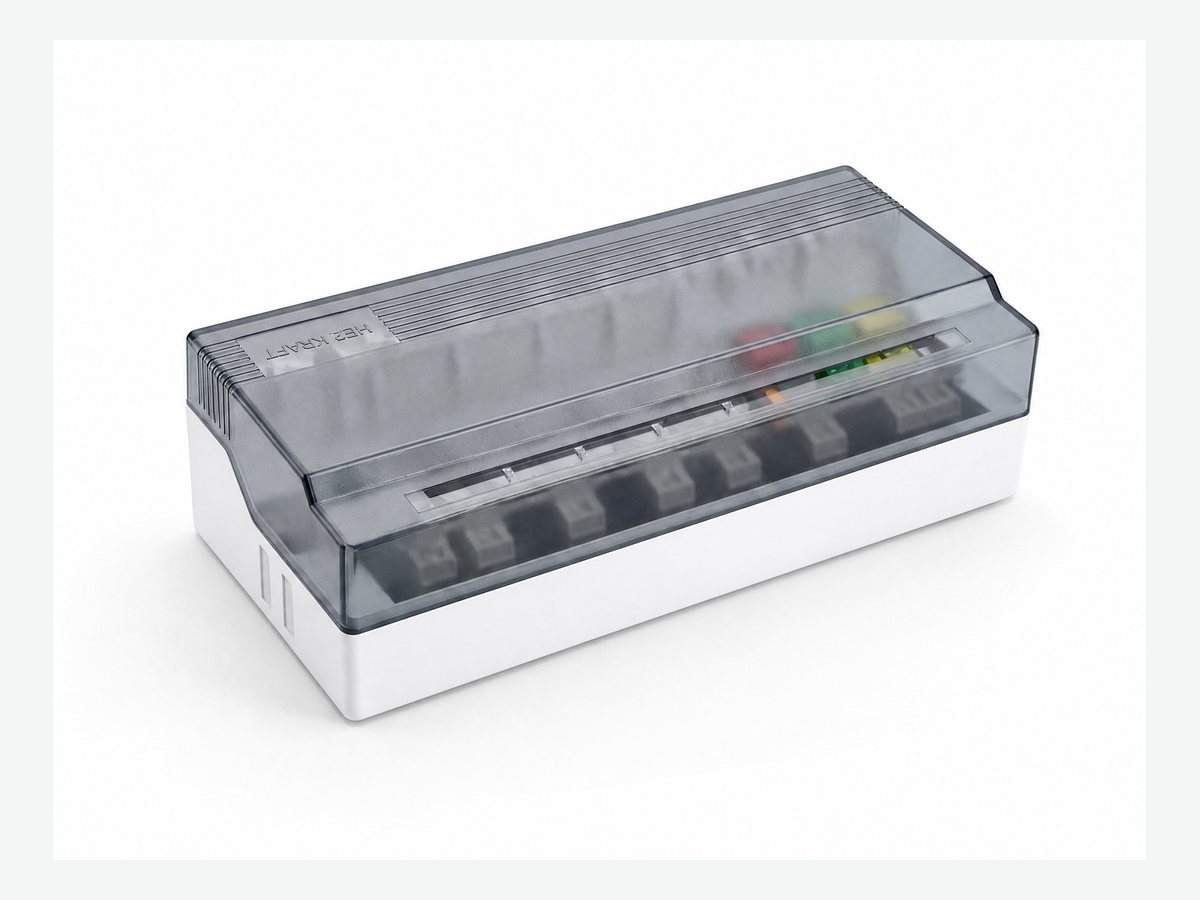

Product view · 5-Zone central control enclosure
AT A GLANCE
Coordinate your entire heating system efficiently.
Designed to be the central brain of your hydronic floor heating network, this box bridges communication between temperature control panels, mixing water centers, and boilers. It provides a structured wiring hub that eliminates guesswork, minimizes faults, and actively saves energy.
Smart Linkage Delays

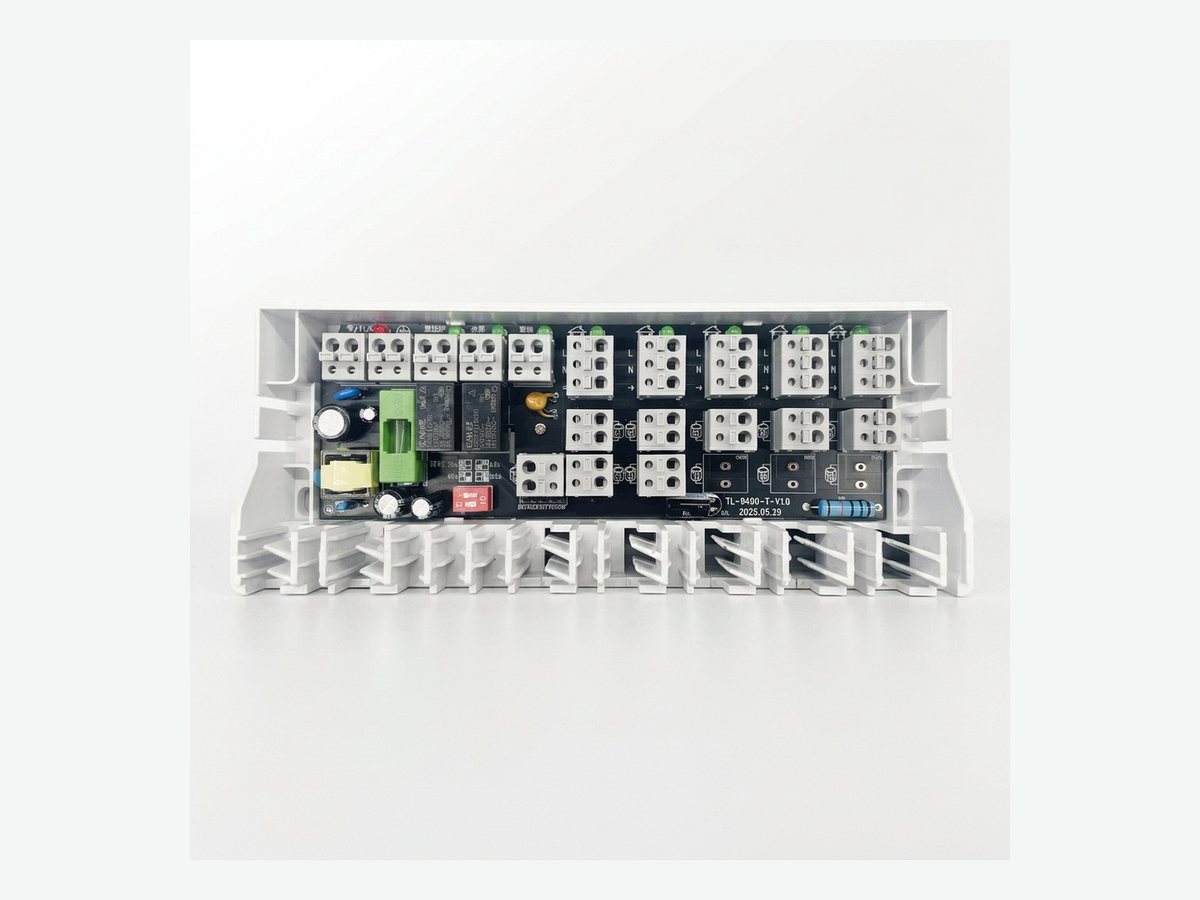

Features adjustable 30s/45s/60s/120s delay configurations for both the water pump and the voltage-free boiler linkage to protect equipment.
Multi-Zone Capacity

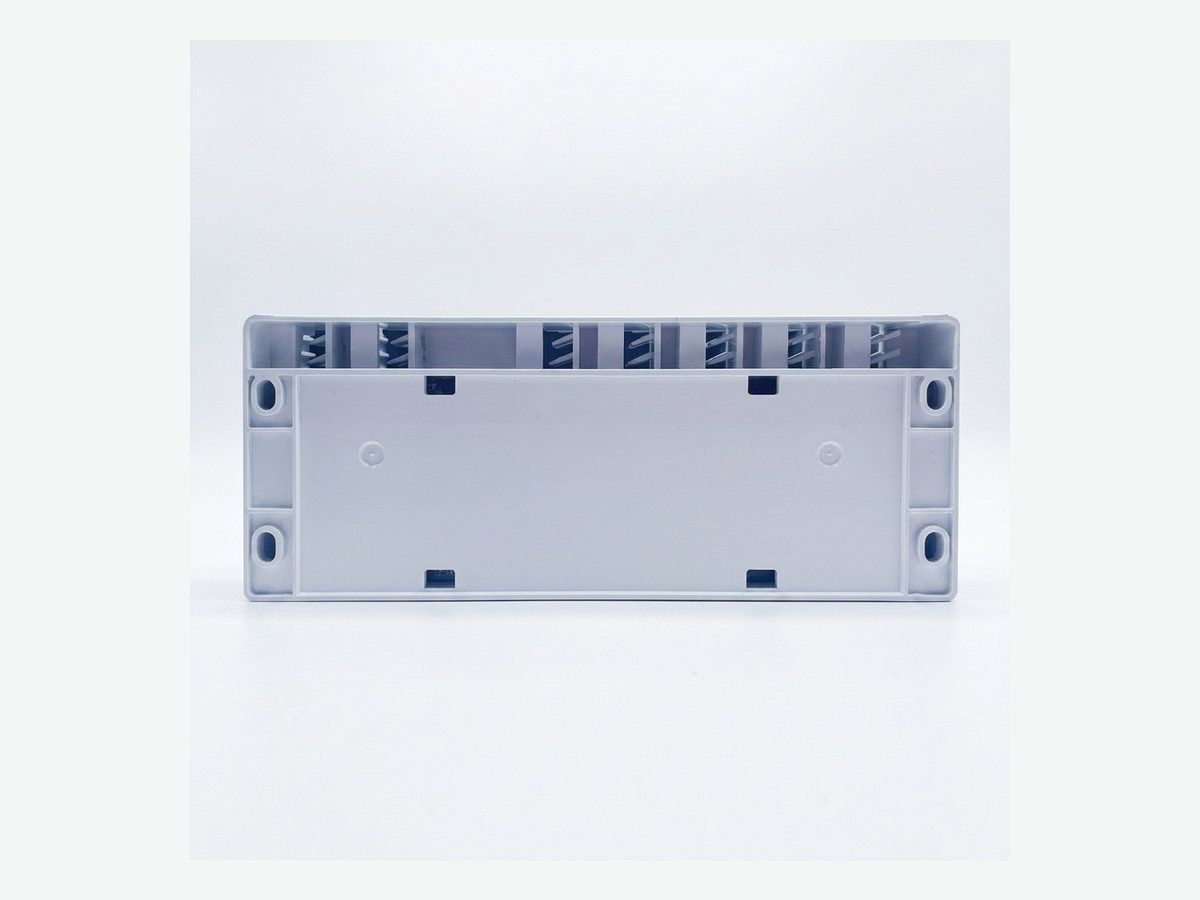

Supports up to 5 thermostats managing a total of 8 heating zones, with flexible NO/NC control methods to suit any project design.
TECHNICAL PROFILE
Product specifications
Working VoltageAC220V±10% 50/60Hz
Load Capacity5A (Boiler) / 16A (Pump)
CommunicationWired
Capacity5 Thermostats / 8 Zones
Control MethodNormally Closed / Open (NC/NO)
Pump Linkage1KW (30/45/60/120s delay)
Boiler LinkageVoltage Free (30/45/60/120s delay)
Dimensions (L×W×H)75 × 185 × 48 mm
Operating Temp0℃ ~ +50℃
Storage Temp-20℃ ~ +70℃
Confirm the final actuator, thermostat, pump, and boiler linkage wiring scheme against your project’s electrical plan before installation.
INSTALLATION WORKFLOW
Clear, organized terminal logic.
The control box is engineered for logical, straightforward wiring. It includes 5 dedicated zones where each zone connects a thermostat and an actuator, reducing installation errors and streamlining maintenance.
- 01 Confirm the wall-mounting position and service clearances
- 02 Identify the 5 terminal points for each zone (L, N, and signal terminals)
- 03 Route thermostat and thermal actuator wiring to corresponding zones
- 04 Connect the 1KW pump and voltage-free boiler linkages
- 05 Set appropriate delay times (30s to 120s) to protect system hardware
PRODUCT VIEWS
Review the enclosure from every working angle.

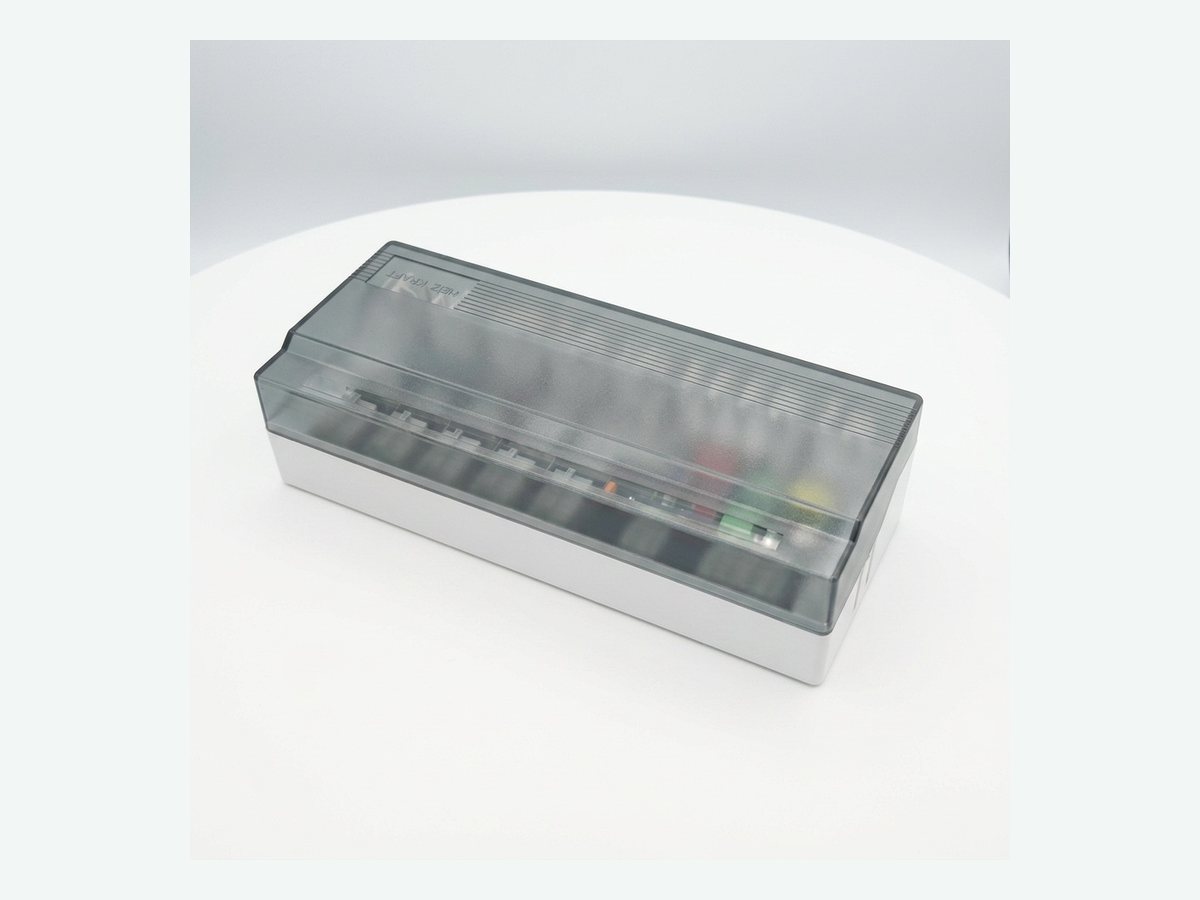

The gallery shows the external enclosure, cover line, base and internal control layout of the 5-Zone Control Box.
PROJECT APPLICATIONS
A practical central enclosure for hydronic heating.
Use the 5-Zone Control Box as part of a complete, energy-saving water-heating arrangement. Final zone counts and accessories must match your specific system design.
PROJECT INQUIRY
Plan your hydronic control arrangement.
Share your floor heating layout, required zones, and equipment specifications with the TELIN team.
